Wearable Computer – Rugged IP66 Assisted Reality Headset with 50 MP Camera

Rugged wearable computer: overview

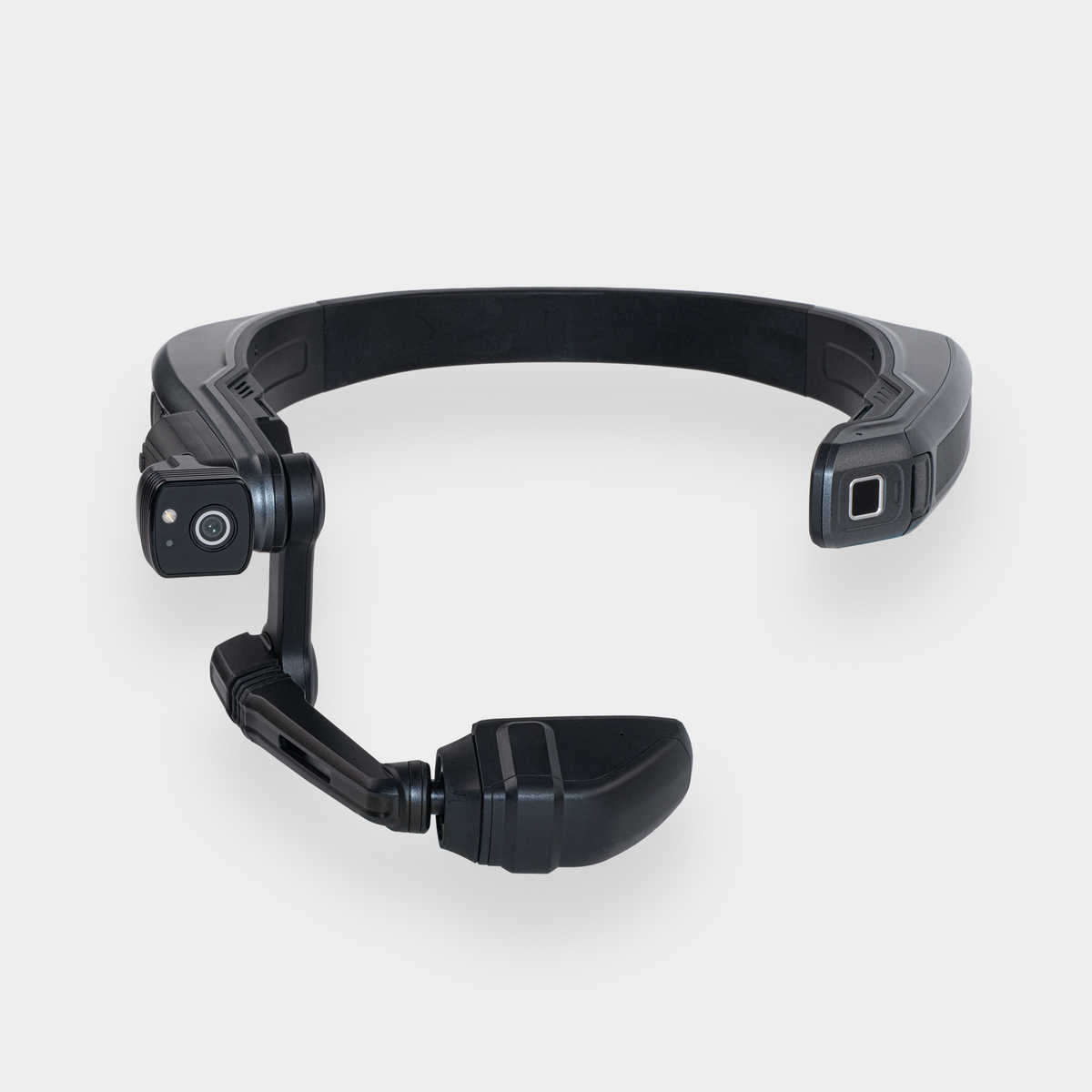

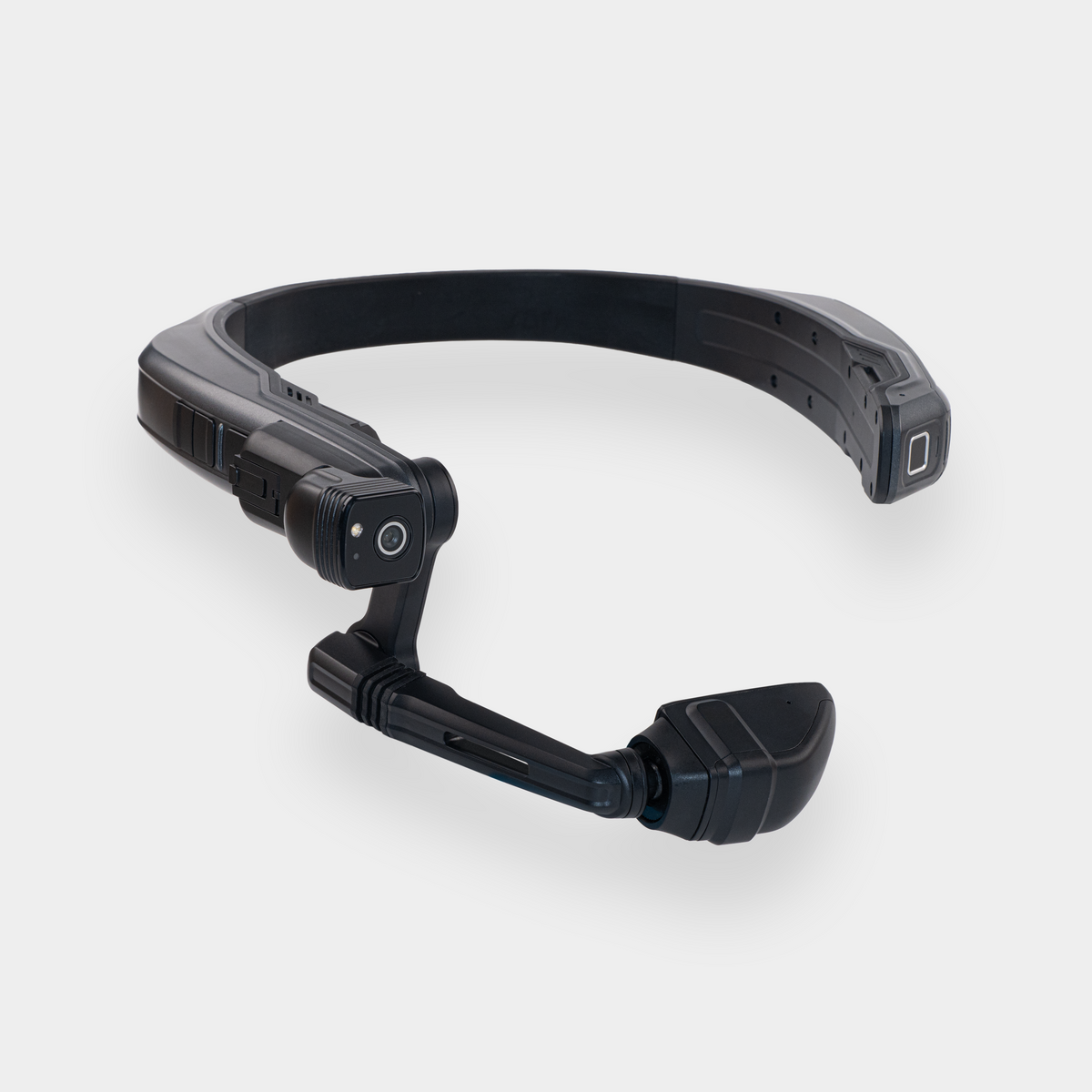

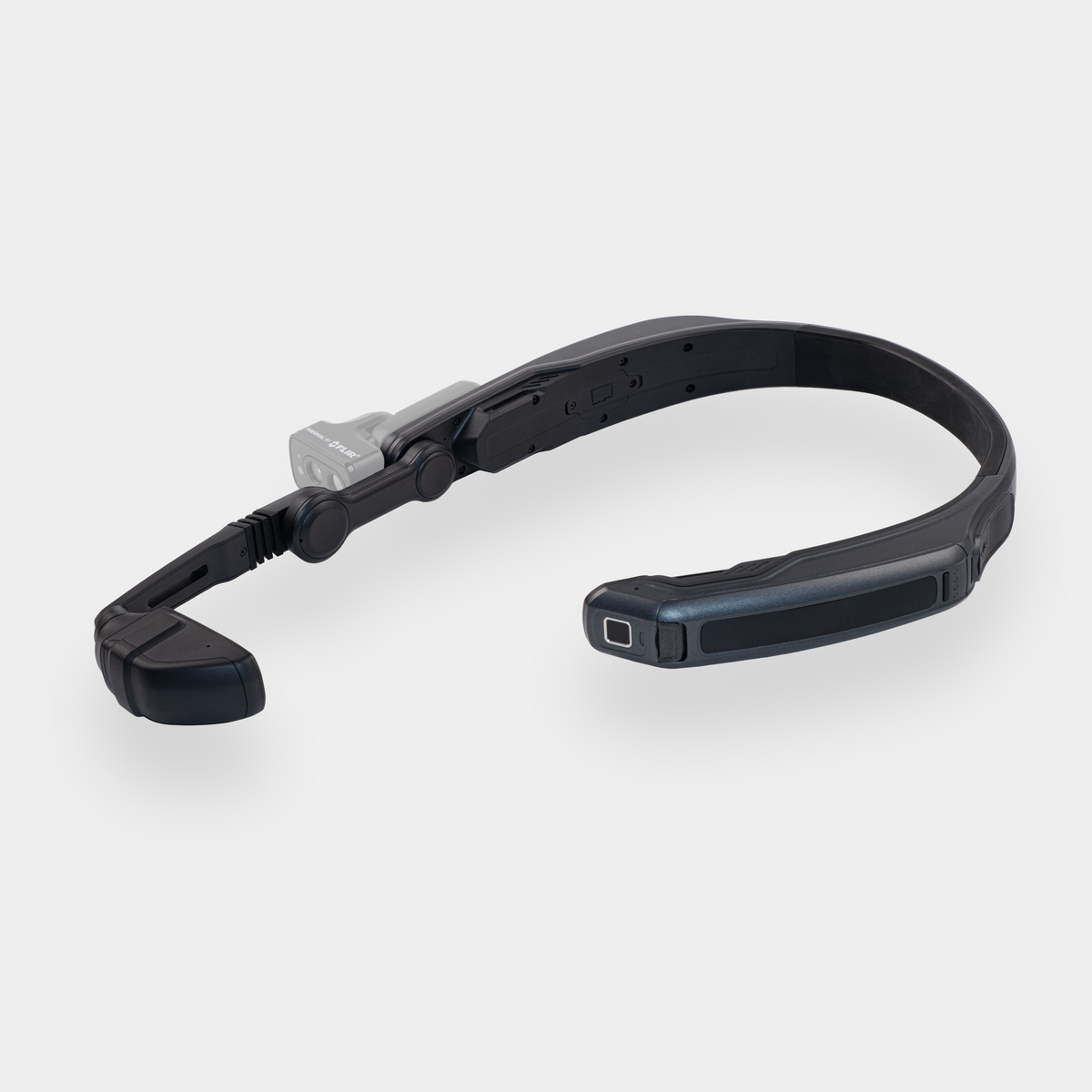

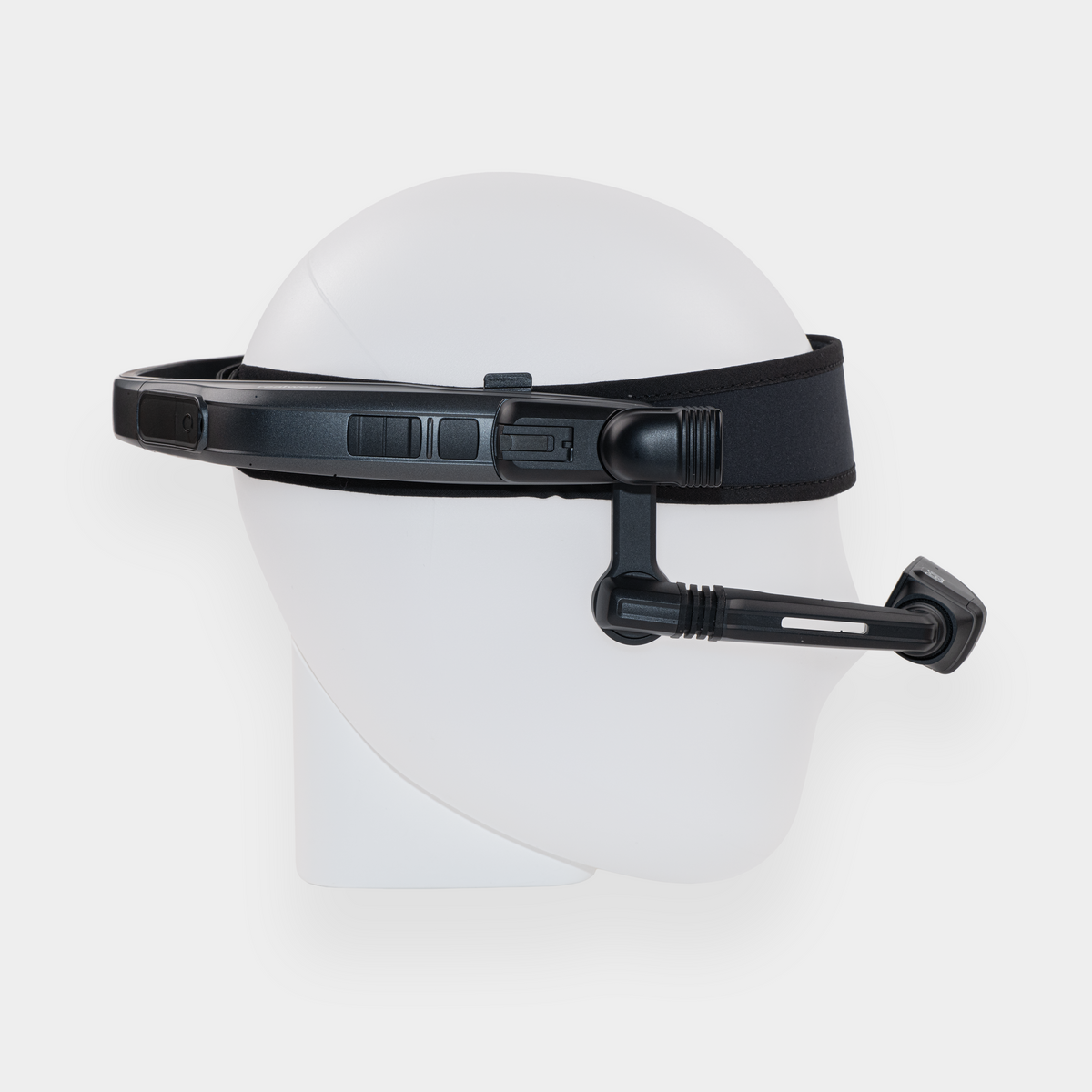

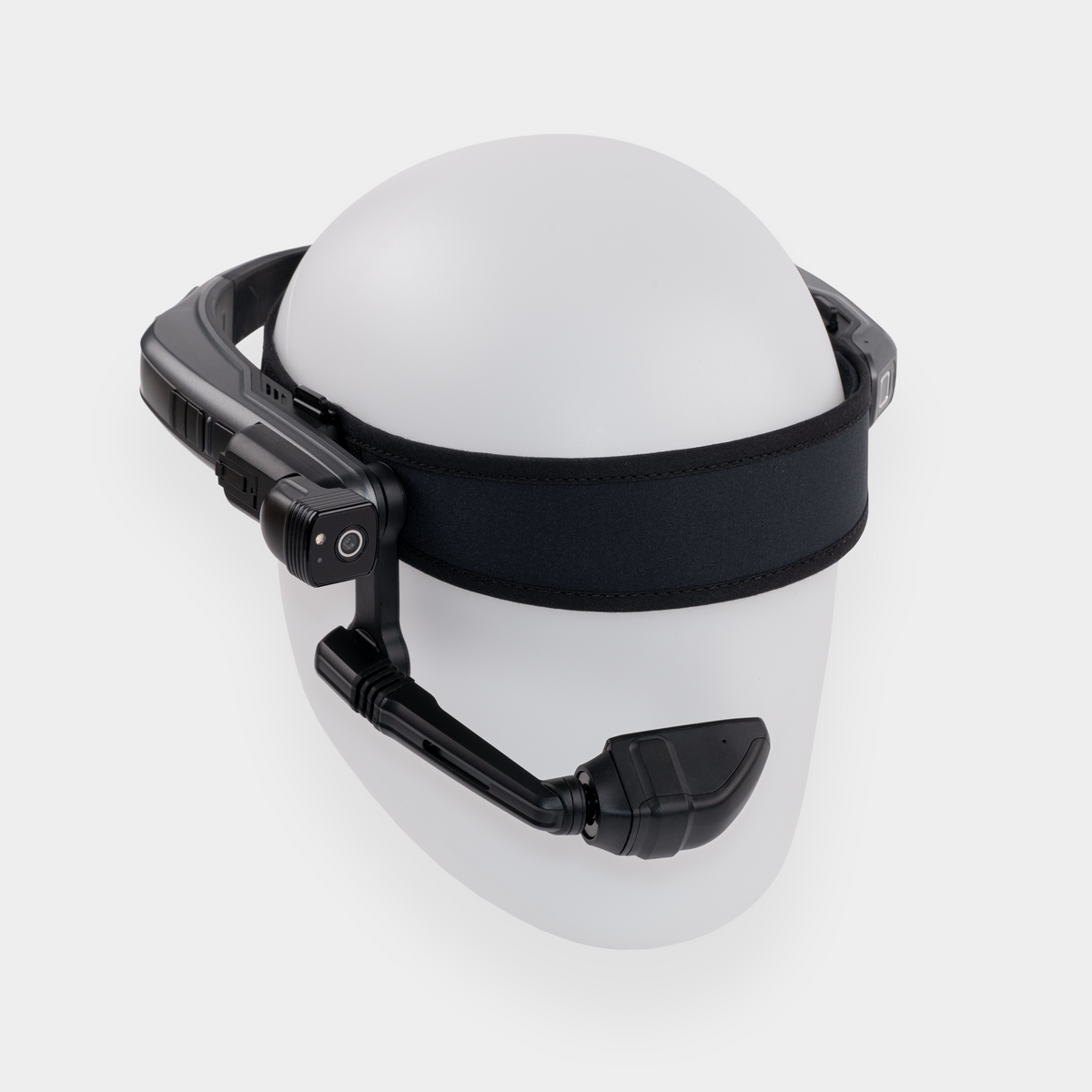

This wearable computer is a rugged, voice-controlled assisted reality headset (the Navigator 520) built for frontline workers in demanding environments. Wear it around the head or attach it to a hard hat; a 6-way adjustable boom arm places the HD display in front of either eye.

It is IP66 rated and MIL-STD-810H certified, withstanding dust, water, drops and temperatures from -20 °C to 45 °C, and hot-swappable batteries keep it running across the longest shifts.

A modular, tiltable 50 MP camera can be swapped for the optional thermal camera module, and a Mini LTE Modem adds cellular data where Wi-Fi is not available, so one headset adapts to many tasks.

Who the rugged wearable computer is for

Field service, utilities, manufacturing and inspection crews working outdoors, on hard hats or in dusty and wet conditions.

• Maintenance and repair technicians
• Field service and utilities crews
• Manufacturing and quality inspection
• Logistics and warehouse teams
• Remote-expert and training programmes

Features in detail

Industrial durability

IP66 and MIL-STD-810H: dust-tight, protected against water jets and drop-tested.

Hot-swappable batteries

Replace the 2600 mAh battery in the field without powering down or losing your work.

Modular 50 MP camera

The tiltable 50 MP camera (82° FOV, 1080p60, flash) swaps for the thermal module when you need heat inspection.

Adjustable HD display

A 1280 × 720 full-colour LCoS microdisplay with a 24° field of view on a boom arm that works for left- or right-eye users.

Clear audio in loud places

Four noise-cancelling microphones (to 100 dBA) and two 94 dBA speakers; a 3.5 mm jack for wired headsets.

Many mounting options

Hard hat clips, hard hat band, Workband 2, Overhead Band, Tri-Band Strap and ball cap let you match every site rule.

Compatibility

Compatible with hard hats, bump caps, safety and prescription eyewear, hearing protection and wired or wireless headphones, plus the full range of Navigator mounts, batteries, chargers, the thermal camera module and the Mini LTE Modem.

Choosing the right accessories

For the rugged headsets (Navigator 520 and Z1), choose a mount that matches your site rules: brand-specific hard hat clips give the firmest fit on MSA, Honeywell, Petzl, 3M and Japanese helmets; the universal hard hat band fits most other front-brim hard hats; the Workband 2, Tri-Band Strap and Overhead Band are for use without a hard hat or under a bump cap; and the ball cap suits outdoor, light-duty work.

For power, the Navigator 520 uses hot-swappable 2600 mAh batteries: pair spares with the single-bay charger and a Quick Charge 3.0 USB-A adapter. The lightweight headband model (Arc 3) charges over USB-C or on its desk/wall charging station, powered by a USB-C Power Delivery adapter.

For connectivity and sensing, the Mini LTE Modem adds 4G where there is no Wi-Fi, and the thermal camera module adds FLIR thermal imaging to the Navigator 520. Remember that only certified accessories keep the Navigator Z1 intrinsically safe.

Setup and use

1. Charge the headset fully with the USB-C cable (or the charging station, where available) before first use.
2. Fit the headband or mount, then position the display so it sits just below your line of sight on your dominant eye.
3. Power on and follow the voice-guided setup: connect to Wi-Fi by scanning a QR code generated in the companion app.
4. Say "What can I say?" at any time to see the available voice commands, and install your enterprise apps (remote-expert, workflow or document viewers).
5. For fleets, enrol the headsets in Ari Cloud so IT can deploy apps, settings and updates centrally.

Care and maintenance

Wipe the display window, camera lens and housing with a soft, slightly damp cloth; avoid solvents on the plastics and optics. Clean or replace straps and pads regularly on shared headsets, charge batteries at room temperature, and keep the headset in its EVA case for transport. Install Ari OS updates and manage the fleet through Ari Cloud so every device runs the same software.

Specifications

Rating	IP66, MIL-STD-810H
Display	1280 × 720 LCoS, 24° FOV, either eye
Chipset	Qualcomm Snapdragon 662
Memory	64 GB / 4 GB RAM, microSD up to 512 GB
Camera	50 MP, 82° FOV, tiltable, modular
Battery	2600 mAh / 3.8 V, hot-swappable
Weight	270 g
Operating temperature	-20 °C to 45 °C
Ports	USB-C, 3.5 mm audio
OS	Ari OS (Android 13)
Service plans	1, 2 or 3 years

What's in the box

• Rugged assisted reality headset
• Battery pack
• Workband 2
• USB cable (Type-C to Type-A)
• Quick start guide
